2.6kW Air Parking Heater
Rated heating power: 2600W; dimensions: 310 × 115 × 122 mm; heater unit weight: approximately 2.7 kg. Suitable for use at altitudes up to 5,000 meters, with rapid heating, quiet operation, self-protection, and self-diagnostics. Rated power consumption: 7–24W; operating ambient temperature: -40°C to +35°C.

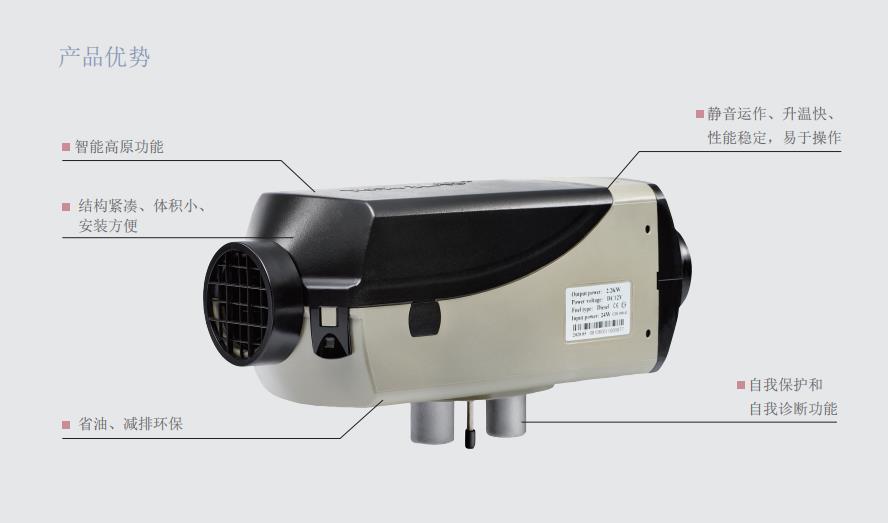

Core Advantages
2600W Independent Heating
Heats the intake air and delivers it directly into the target space, providing warm air to a vehicle or boat cabin without starting the engine.
Gasoline/Diesel Models Available
The gasoline model uses a 12V power supply, while the diesel model is available in 12V or 24V, making it easy to match different vehicle fuel and electrical systems.
Smart High-Altitude Function
The original product specifications indicate an operating altitude of up to 5,000 m, meeting the needs of high-altitude road trips, transportation, and mobile operations.
Compact and Lightweight
The main unit measures 310 × 115 × 122 mm and weighs approximately 2.7 kg, making it easy to install in limited spaces such as under seats or in storage compartments.
Fuel-Efficient and Low-Emission
The gasoline model consumes approximately 0.15–0.29 L/h, while the diesel model consumes approximately 0.10–0.28 L/h. Independent on-demand heating helps reduce idling for warmth.
Rapid Heating
Warm air is delivered directly into the target space, providing rapid heating, stable performance, and convenient operation.
Quiet Operation
The structure and controls are optimized for parking heating, making it suitable for overnight rest and extended parking. Actual noise levels depend on installation quality.
Self-Protection and Diagnostics
Equipped with self-protection and self-diagnostic functions to help identify abnormal conditions and improve safety in daily use.
Technical Specifications and Basic Information
| Item | Gasoline Model | Diesel Model |
|---|---|---|
| Rated Heating Power | 2600W | 2600W |
| Fuel Type | Gasoline | Diesel |
| Rated Voltage | 12V | 12V/24V |
| Fuel Consumption | 0.15-0.29L/h | 0.10-0.28L/h |
| Rated Power Consumption | 7-24W | 7-24W |
| Operating Ambient Temperature | -40°C to +35°C | -40°C to +35°C |
| Operating Altitude | ≤5000m | ≤5000m |
| Main Unit Weight | Approx. 2.7kg | Approx. 2.7kg |
| Dimensions | 310×115×122mm | 310×115×122mm |
| Mobile Remote Control | Optional | Optional |

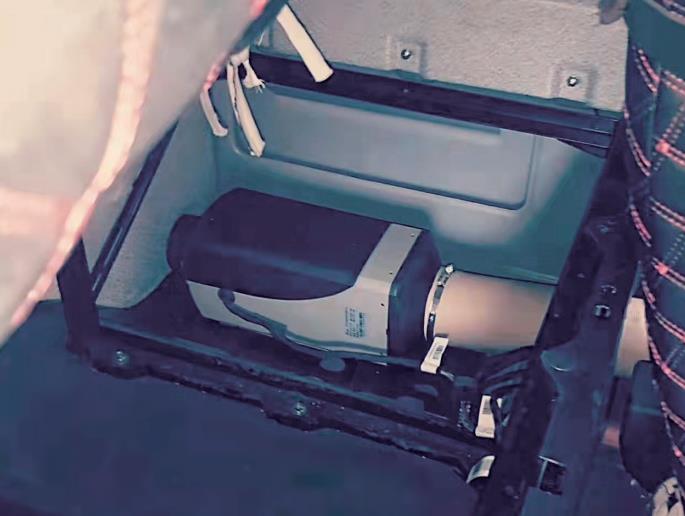

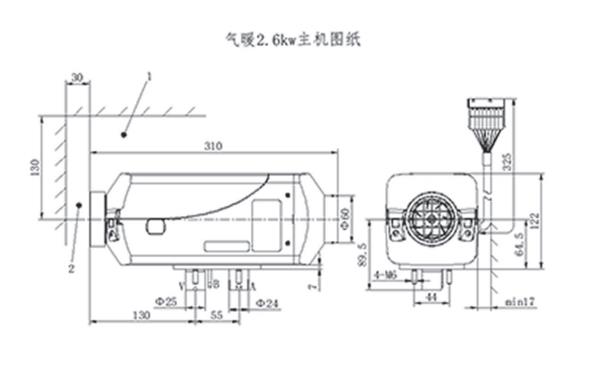

Product Images, Advantages, Dimensions, and Installation Examples
Applications
RV and Camper Heating
Delivers warm air to the living compartment while parked without starting the engine, making it ideal for winter camping, long-distance travel, and overnight parking.
Truck Cab Heating
Provides an independent heat source for the cab or sleeper compartment, reducing fuel consumption caused by prolonged idling for heat while parked.
Electric Vehicle Cabin Heating
Independent diesel or gasoline heating can reduce reliance on the traction battery for heating, subject to vehicle safety requirements for installation.
Yacht and Marine Vessel Heating
Suitable for vessel cabins with compliant fuel, power supply, intake, exhaust, and installation conditions. Special attention should be paid to waterproofing and ventilation during installation.
Special-Purpose Vehicles for Field Operations
Provides parked heating in low-temperature environments for vehicles used in construction, exploration, communications, emergency support, and other field operations.
High-Altitude Road Trips and Transportation
The intelligent high-altitude function is suitable for travel and transportation at high elevations. The specified maximum operating altitude is 5,000 m.
Recommended Configuration List (Subject to the Order Confirmation)
Frequently Asked Questions
What vehicles and spaces is this heater suitable for?
Suitable for RVs, camper vans, electric vehicles, trucks, yachts, various boats and ships, and special-purpose off-road vehicles. Actual model selection should also take into account the space heating load, installation location, and ventilation conditions.
How should I choose between the gasoline and diesel models?
Choose based primarily on the vehicle's existing fuel type. The gasoline model has a rated voltage of 12V, while the diesel model is available in 12V or 24V. The controller, wiring harness, and accessory versions must also be confirmed before ordering.
What size space is the 2.6kW model suitable for?
Performance depends on the space volume, insulation, window area, ambient temperature, and target temperature. Selection based on a heating load calculation is recommended.
Can it be used in high-altitude areas?
Yes! It can operate at altitudes of up to 5,000m.
Is smartphone remote control included as standard?
No. The original page lists smartphone remote control as an optional feature. The communication method, service fees, and service terms must be confirmed before ordering.
What requirements must the installation location meet?
Adequate space must be reserved for the main unit, hot-air ducts, fuel line, air intake, exhaust, and maintenance access. Combustion air must be drawn from outside the compartment, and exhaust gases must be discharged outside it. Do not allow the high-temperature exhaust system to come into contact with flammable materials.
Why does installation quality affect noise levels and heating performance?
Fuel pump mounting, intake and exhaust routing, hot-air duct resistance, vibration isolation of the main unit, and air outlet placement all affect operating noise, airflow, and thermal efficiency. Installation should be performed by qualified professionals in accordance with the instructions.
What routine maintenance is required?
Regularly inspect the fuel line, wiring harness, intake and exhaust systems, hot-air ducts, and fasteners. After an extended period of disuse, inspect the unit before performing a test run. Stop using the unit and have it serviced if an abnormal error code, noise, odor, or exhaust condition occurs.
Product Description, Operating Principle, Installation and Maintenance
产品说明
2.6kW气暖驻车加热器分为汽油型和柴油型。设备由小型单片机控制，通过供热风扇吸入冷空气，经燃烧换热后将热风送入需要加热的空间，实现独立驻车取暖。
主要特点
产品具备智能高原、结构紧凑、体积小、安装方便、节油减排、静音运行、快速升温、性能稳定、自我保护和自我诊断等特点。主机外形尺寸310×115×122mm，重量约2.7kg，适合有限空间安装。
型号选择
汽油型使用12V电源，柴油型可选12V或24V。选型时应确认车辆燃料、额定电压、空间热负荷、安装位置、进排气路径、控制方式和附件清单。手机遥控为选配，产品不支持非标定制。
专业安装
设备涉及燃油、电气、高温排气和燃烧空气，应由专业人员安装。燃烧进气和废气必须与被加热空气分离并通向舱外；排气管应远离燃油管、线束、保温材料和其他易燃部件。热风入口不得被遮挡，出口应避免直吹不耐高温物品。
首次运行
首次启动前应检查燃油管路密封性、电源极性和保险规格，确认进排气畅通、主机固定可靠、热风管无过度弯折。启动后观察点火、排气、风量和控制器状态，发现燃油泄漏、异常烟雾或异响应立即停机检查。
安全与通风
驻车加热器燃烧会产生高温废气。不得在封闭且无排气条件的车库或舱室内运行；车内建议配置一氧化碳报警器并保持必要通风。船舶应用还应满足防水、防腐和相应行业安装要求。
日常维护
定期检查燃油管、燃油泵、线束接头、进排气、热风管和固定件。长期停用后再次使用前应完成系统检查和试运行；出现异常报码、异味、异响、排气异常或反复点火失败时，应停止使用并交由专业人员检修。
