5kW Air Parking Heater
Heating output: 5000W; rated power consumption: 15–90W. Operates at ambient temperatures from -40°C to +35°C and supports intelligent high-altitude operation at elevations up to 5,000 meters. The main unit measures 425 × 148 × 162 mm and weighs 5.9 kg. Features include rapid heating, a compact design, fuel efficiency, reduced emissions, self-protection, and fault diagnostics.

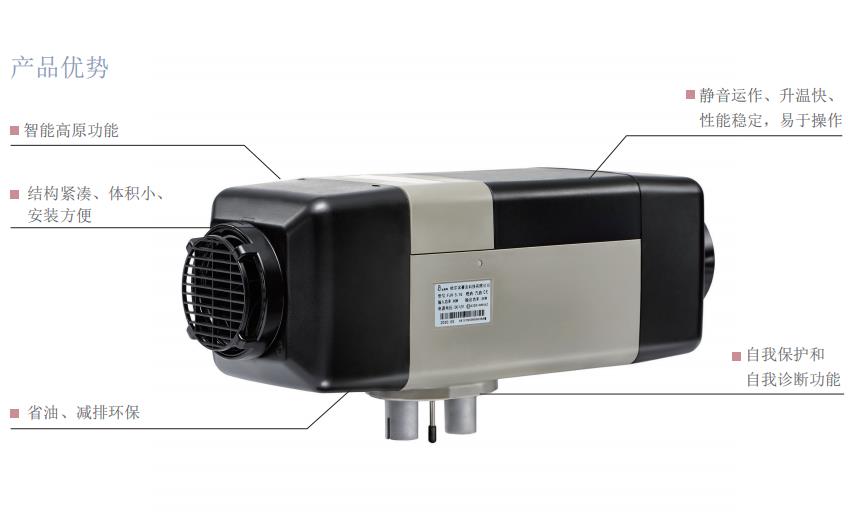

Core Advantages
5000W Rapid Heating
Full-power hot-air heating draws in cold air, heats it, and delivers it to the desired space, making it ideal for rapid heating while parked.
Gasoline/Diesel Options
The gasoline model supports DC 12V, while the diesel model supports DC 12V or 24V, making it easy to match different vehicle fuel and power supply systems.
Intelligent High-Altitude Function
According to the product specifications, it supports operation at altitudes of up to 5,000 meters, making it suitable for high-altitude road trips, transportation, and mobile operations.
Operation at Temperatures as Low as -40°C
With an operating ambient temperature range of -40°C to +35°C, it is designed to meet vehicle heating needs in extremely cold regions and during winter.
Quiet and Stable Operation
The optimized combustion and airflow processes deliver rapid heating while maintaining comfort during driving, resting, and cabin use.
Compact and Easy to Install
The main unit measures 425 × 148 × 162 mm and features a simple, compact design for easy installation in the limited spaces of vehicles or boats.
Protection and Fault Diagnostics
Self-protection and self-diagnostic functions help identify abnormalities promptly and improve reliability in daily operation.
Mobile Phone Remote Control (Optional)
With the optional mobile phone remote control, limitations caused by conventional remote-control range and obstacles can be reduced, allowing the heater to be switched on in advance.
Technical Specifications
| Parameter | Gasoline Model | Diesel Model |
|---|---|---|
| Heating Power | 5000W | 5000W |
| Fuel Type | Gasoline | Diesel |
| Rated Voltage | DC 12V | DC 12V / 24V |
| Fuel Consumption | 0.23-0.69L/h | 0.19-0.63L/h |
| Rated Power Consumption | 15-90W | 15-90W |
| Operating Ambient Temperature | -40°C to +35°C | -40°C to +35°C |
| Operating Altitude | ≤5000m | ≤5000m |
| Main Unit Weight | 5.9kg | 5.9kg |
| Dimensions | 425×148×162mm | 425×148×162mm |
| Mobile Remote Control | Optional | Optional |
Product Images and Technical Information
Applications
Truck Cab Heating
Independently delivers warm air to the cab during rest stops or loading and unloading waits, reducing fuel consumption caused by prolonged idling for heat.
RV and Camper Van Camping
Provides independent warm-air heating for sleeping and living areas, ideal for winter road trips, camping, and extended parking.
Electric and New Energy Vehicles
Provides cabin heating through an independent fuel-powered heat source, reducing the heating system's continuous drain on the vehicle's traction battery range.
Mid-Size Buses and Commuter Vehicles
Serves as an auxiliary heating solution while parked or in low-temperature environments, improving passenger compartment warm-up speed and comfort.
Special-Purpose Vehicles and Field Operations
Supports mobile work vehicles used in engineering, communications, emergency response, and other operations by providing heating for cabs or work compartments in extremely cold conditions.
Yacht and Marine Cabins
Suitable for yachts and other marine cabins that meet installation requirements, providing independent warm-air heating. Marine installation must comply with applicable safety regulations.
High-Altitude and Cold-Region Travel
Intelligent high-altitude and low-temperature operation makes it suitable for high-altitude routes, cold-region transportation, and winter outdoor activities.

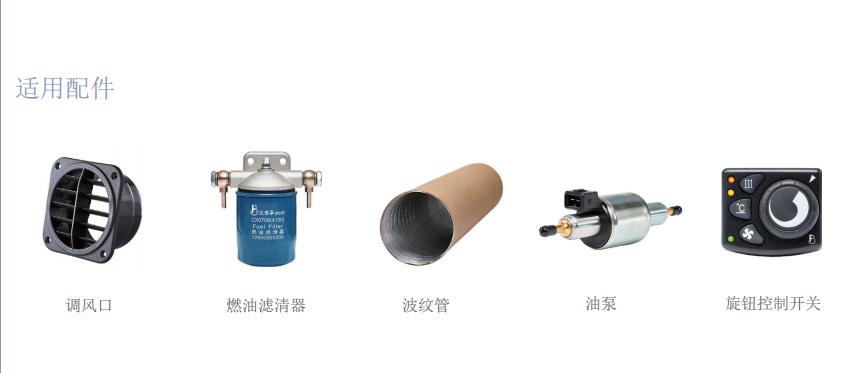

Recommended Configuration List (Subject to Order Confirmation)
Frequently Asked Questions
What vehicles or spaces is this heater suitable for?
Suitable for trucks, electric vehicles, new energy vehicles, mid-sized buses, motorhomes, camper vans, special-purpose vehicles, yachts, and other compartments that meet the installation requirements. The specific heating load and installation conditions should be confirmed during model selection.
How should I choose between the gasoline and diesel versions?
First, select the appropriate version based on the vehicle's fuel type, and also verify the supply voltage. The gasoline version operates on DC 12V, while the diesel version is available in DC 12V or 24V.
How does the product provide independent heating?
The heater burns gasoline or diesel to generate heat. A fan draws in cold air, which is heated as it passes through the heat exchanger and then delivered as warm air to the target space. The entire process operates independently of the original vehicle's engine coolant heating system.
What is the fuel consumption?
The gasoline version consumes approximately 0.23–0.69 L/h, while the diesel version consumes approximately 0.19–0.63 L/h. Actual fuel consumption varies depending on ambient temperature, altitude, heating load, selected setting, and installation conditions.
Can it be used in high-altitude areas?
It can operate at altitudes up to 5,000 meters. For high-altitude use, ensure that the fuel, power supply, air intake, exhaust, and maintenance conditions meet the requirements of the selected model.
What are the minimum and maximum operating ambient temperatures?
The operating ambient temperature range is -40°C to +35°C. In extremely cold environments, use fuel and electrical configurations suitable for low temperatures and ensure sufficient power supply capacity.
Is mobile phone remote control included as standard?
No. Mobile phone remote control is an optional feature. Before ordering, confirm the control module, communication method, service conditions, and compatibility with the selected heater unit.
What are the most important safety requirements for installation?
The combustion air intake and exhaust must be isolated from the passenger compartment. The exhaust outlet must not face the vehicle interior or flammable materials. Fuel lines and electrical connections must be securely fastened and protected against leaks. Professional installation is recommended.
How much installation space does the main unit require?

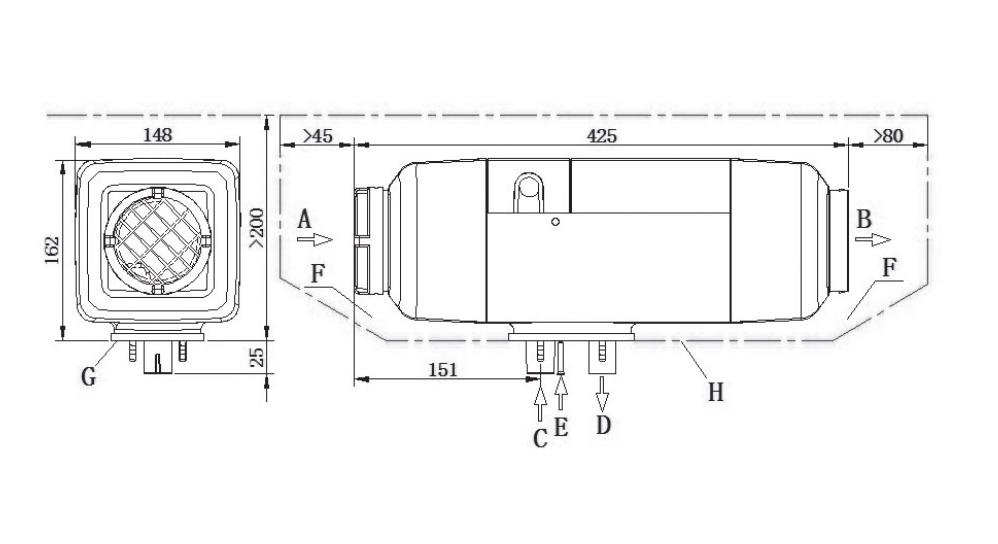

The main unit measures 425 × 148 × 162 mm. Additional space must be reserved for the warm-air ducts, fuel lines, air intake, exhaust, wiring harness, and future maintenance. Do not size the installation opening based solely on the unit's dimensions.
What routine maintenance is required?
Regularly inspect the fuel lines, fuel pump, filter, intake pipe, exhaust pipe, warm-air ducts, and wiring harness connectors. Remove any debris from the air inlet. If an error code, unusual noise, unusual odor, fuel leak, or abnormal exhaust smoke occurs, shut down the unit and inspect it.
