4KW Air Parking Heater

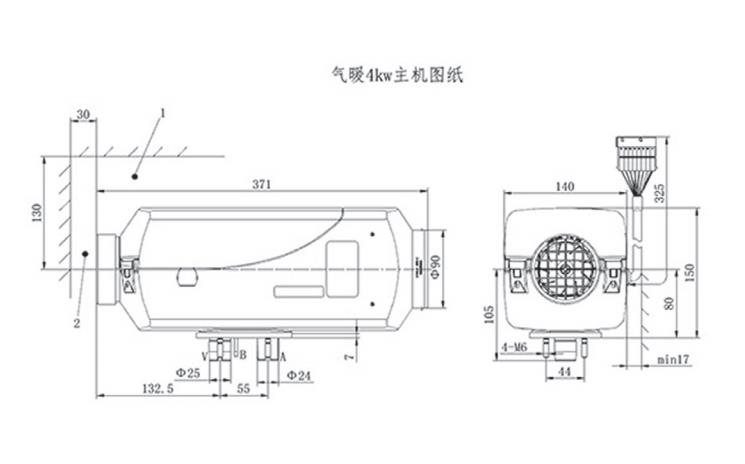

Heating output: 4000W; rated power consumption: 9–40W. Supports operation at altitudes up to 5,000 m and in ambient temperatures from -40°C to +35°C. The main unit measures 371 × 140 × 150 mm and weighs 4.5 kg. Features include fuel efficiency, easy operation, self-protection, and convenient installation.

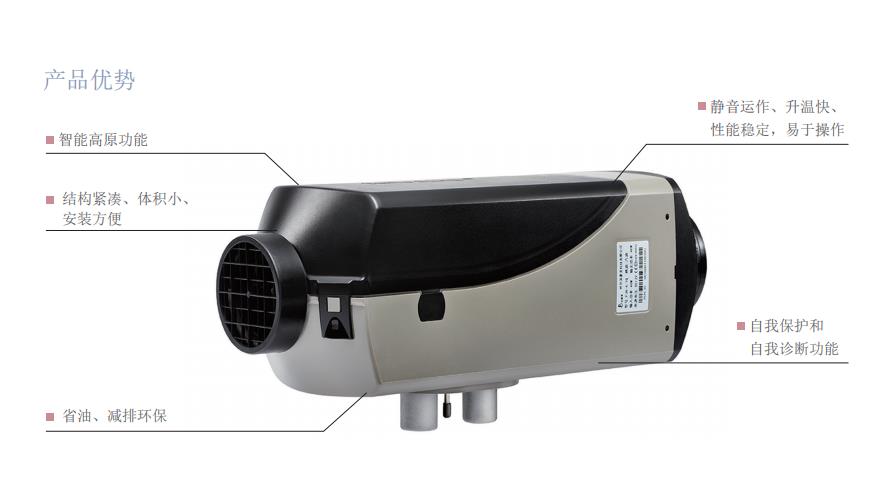

Key Advantages
4000W Hot Air Heating
The air heater draws in cold air, heats it, and delivers it into the cab or passenger compartment to directly raise the interior temperature.
Gasoline or Diesel Options
Available in gasoline and diesel versions, allowing selection based on the vehicle's fuel system and operating conditions.
Multiple Voltage Options
The gasoline version operates on DC 12V, while the diesel version is available in DC 12V or 24V, covering common passenger and commercial vehicles.
Intelligent High-Altitude Adaptation
The original page states that operation is supported at altitudes up to 5,000 m, making it suitable for heating while driving or parked at high altitudes.
Low-Temperature Operation
The operating ambient temperature range is -40°C to +35°C, meeting winter vehicle heating needs in cold regions.
Low Power Consumption
With a rated power consumption of 9–40W, it provides independent heating while reducing the continuous load on the vehicle's electrical system.
Independent of the Vehicle's Original Heating System
It creates a hot-air circuit independent of the vehicle's original heating system and can also be used while parked, depending on the installation setup.
Quiet Operation and Self-Protection
The product description highlights quiet operation, ease of use, and built-in self-protection during operation.
Technical Specifications
| Parameter | Gasoline Model | Diesel Model |
|---|---|---|
| Heating Power | 4000W | 4000W |
| Fuel Type | Gasoline | Light Diesel |
| Rated Voltage | DC 12V | DC 12V / 24V |
| Fuel Consumption | 0.18-0.54L/h | 0.11-0.51L/h |
| Rated Power Consumption | 9-40W | 9-40W |
| Operating Ambient Temperature | -40℃ to +35℃ | -40℃ to +35℃ |
| Operating Altitude | ≤5000m | ≤5000m |
| Main Unit Weight | 4.5kg | 4.5kg |
| Dimensions | 371×140×150mm | 371×140×150mm |
| Mobile Phone Remote Control | Optional | Optional |
Product Images and Technical Information
Applications
Truck Cab Parking Heating
Provides independent warm air for the cab when the vehicle is parked or the driver is resting, reducing reliance on prolonged engine idling for heating.
Electric and New Energy Vehicles
Supplements interior heating for new energy vehicles that require an independent air heating solution. Installation must be compatible with the vehicle's electrical system and available space.
Mid-Sized Buses and Commuter Vehicles
Can be used for auxiliary passenger compartment heating in mid-sized buses, shuttle buses, and similar vehicles, improving passenger comfort in cold environments.
Special-Purpose and Engineering Vehicles
Suitable for support vehicles, engineering vehicles, mobile work vehicles, and other vehicles that need to maintain the cabin temperature in low-temperature environments.
Travel in High-Altitude and Cold Regions
Supports operation at altitudes up to 5,000 m and temperatures as low as -40°C, making it suitable for high-altitude routes and winter travel in cold regions.
Ships and Enclosed Cabins
Can be used for heating various types of ships. Fuel, intake and exhaust, and electrical safety systems must be designed by qualified professionals for actual applications.
Frequently Asked Questions
What applications is this heater suitable for?
Suitable for heating truck cabs, electric vehicles and new energy vehicles, medium-sized buses, special-purpose vehicles, and various types of vessels. The available installation space, power supply, fuel, combustion air intake, and exhaust conditions must be confirmed during model selection.
How should I choose between the gasoline and diesel models?
The heater should first be matched to the vehicle's fuel type and power supply system. The gasoline model is rated for 12V; the diesel model is available in 12V or 24V. Do not use incompatible fuel or voltage specifications.
What is the fuel consumption?
The specified fuel consumption is 0.18–0.54 L/h for the gasoline model and 0.11–0.51 L/h for the diesel model. Actual consumption varies depending on ambient temperature, heating load, selected setting, and installation conditions.
Can it be used at high altitudes and in low-temperature environments?
The maximum operating altitude is 5,000 m, and the operating ambient temperature range is -40°C to +35°C. When operating near these limits, ensure that the fuel supply, power supply, and installation conditions meet the requirements.
Is mobile phone remote control included as standard?
No. Mobile phone remote control is an optional feature. The original page states that it is not subject to conventional distance or obstacle limitations. Please confirm the specific module, network requirements, and control method when ordering.
Can combustion exhaust gases be discharged directly into the vehicle interior?
No. The combustion air intake and exhaust must be arranged in accordance with the installation requirements. Exhaust gases must be safely discharged outside the cabin and kept away from air inlets, doors, windows, fuel lines, and heat-sensitive components.
Can I install it myself?
Installation involves fuel, electrical wiring, air intake, exhaust, and high-temperature components. Installation by a professional familiar with parking heaters is recommended. Before first use, check for fuel leaks, wiring harness protection, exhaust sealing, and unobstructed hot-air ducts.
