Fuel-Powered Combi Air and Water Heater
Combines interior space heating and domestic hot water in one unit. Available in diesel and gasoline versions, both equipped with mains electric heating as standard. Fuel heating output: 2000–4000W; electric heating output: 900W/1800W. Features a 10L water tank, with a maximum system and pump pressure of 0.35MPa. Overall dimensions: 510×450×300mm; unit weight: 15.6kg without water. Features include intelligent high-altitude operation, ultra-quiet performance, app control, Bluetooth upgrades, a brushless motor, and adjustable hot water temperature. Depending on the model, the operating temperature is as low as -25°C or -40°C, with a maximum operating altitude of 5,000m.
Key Advantages
Combined Air and Water Heating
A single unit provides both interior warm air and domestic hot water. The two functions can operate simultaneously or independently as needed.
Diesel/Gasoline Models Available
Available in diesel and gasoline versions, allowing you to select the model that matches your vehicle’s or vessel’s fuel system.
Standard Electric Heating
Compatible with 110V/220V mains power and supports two electric heating power levels, 900W and 1800W, helping reduce fuel consumption when connected to shore power.
Four Warm-Air Outlets
Four warm-air ducts deliver heat to different areas, making the unit suitable for RVs, camper vans, yachts, and other spaces requiring multi-zone air distribution.
Smart High-Altitude Function
Supports operation at altitudes up to 5,000 m, making it suitable for high-altitude travel and mobile work applications.
Ultra-Quiet Operation
Optimized for low operating noise in sleeping and living spaces, making it suitable for overnight parking, camping, and use in boat cabins.
App Control and Bluetooth Updates
Supports smartphone app control and Bluetooth updates for convenient remote operation, status adjustments, and future feature maintenance.
Brushless Motor and Compact Installation
Features a long-life brushless motor and a highly integrated, space-saving design for easy installation planning inside mobile equipment.
Technical Specifications
| Parameter | Value / Description |
|---|---|
| Product Type | Fuel-Powered Water and Air Heater Combo |
| Fuel Type | Diesel / Gasoline |
| Rated Voltage | DC 12V |
| Operating Voltage Range | DC 10.5-16V |
| Maximum Short-Term Power Consumption | 8-10A |
| Average Power Consumption | 1.8-4A |
| Fuel Heating Output | 2000-4000W |
| Fuel Consumption | 240-550 (ml/H) |
| Mains Voltage | AC 220V / 110V |
| Mains Heating Output | 900W / 1800W |
| 220V Mains Power Consumption | 3.9A / 7.8A |
| 110V Mains Power Consumption | 7.8A / 15.6A |
| Heating Medium | Water / Air |
| Water Tank Capacity | 10L |
| Maximum System Pressure | 0.35MPa |
| Maximum Water Pump Pressure | 0.35MPa |
| Operating Ambient Temperature | -25°C / -40°C (depending on the specific fuel model) |
| Operating Altitude | ≤5000m |
| Main Unit Weight | 15.6kg (without water) |
| Dimensions | 510×450×300mm |

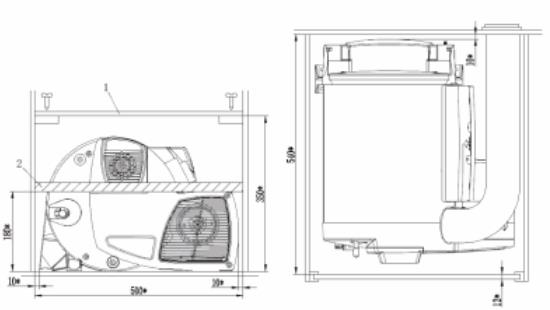

Product Appearance and Installation Dimensions
Applications
Winter RV Travel
Four warm-air outlets cover different areas inside the vehicle, while the 10 L water tank supplies domestic hot water for bathing and the kitchen. One unit meets your heating and hot water needs while parked.
Campervans and Camping Vehicles
The compact design minimizes the space occupied by the unit. It can provide independent heating using the vehicle's fuel or operate on shore power at a campsite.
Yachts and Cabins
Multiple warm-air outlets enhance comfort inside the cabin, while the hot water function supports washing and kitchen use. Marine installation must comply with applicable safety regulations.
High-Altitude Road Trips
The intelligent high-altitude function supports operation at elevations of up to 5,000 m, making it suitable for high-altitude travel and mobile support applications.
Campsite Shore Power Mode
When connected to 110 V or 220 V shore power, the 900 W/1,800 W electric heating modes can be used to reduce fuel consumption while parked at a campsite.
Extended Stationary Living
Ultra-quiet operation, app control, and adjustable hot water temperature make it ideal for overnight rest, extended stays, and mobile living spaces.
Recommended Configuration List (Subject to Order Confirmation)
Frequently Asked Questions
Can space heating and hot water be used simultaneously?
Yes. According to the original product documentation, space heating and hot water can operate simultaneously, or either function can be used independently as needed.
How do I choose between the diesel and gasoline versions?
Choose the appropriate version based primarily on the vehicle's or vessel's existing fuel system. Both models come standard with a mains power function. The specific operating temperature, accessories, and control configuration should be confirmed before ordering.
Does it support both 110V and 220V mains power?
It supports 110V/220V mains power, with a mains heating output of 900W or 1800W. Select the appropriate version based on the actual grid voltage; versions with different voltages must not be connected interchangeably.
Can fuel and mains power be used together?
The product supports a combined fuel and mains power mode. The actual operating combinations, switching logic, and safety restrictions are subject to the control manual for the selected model.
What is the maximum number of warm air outlets that can be connected?
The product delivers warm air through four heating ducts, allowing outlets to be installed in different areas. Duct length, the number of bends, and airflow balancing should be confirmed during installation planning.
What are the water tank capacity and pressure?
The built-in water tank has a capacity of 10L. The maximum system pressure and maximum water pump pressure are both 0.35MPa. Pressure control and safety protection devices should be installed at the water inlet as required.
Can it be used at high altitudes?
Yes. It features an intelligent high-altitude function and can operate at elevations of up to 5,000m. For use in extreme environments, follow the technical documentation for the specific model.
What is the fuel consumption?
240-550ml/h
What should be considered during installation?
The unit involves fuel, 110V/220V mains power, 12V DC power, high-temperature exhaust, hot water, and warm air ducts. It should be installed by a qualified professional, with the air intake and exhaust, fuel system, electrical system, drainage, and maintenance clearances meeting all applicable requirements.
