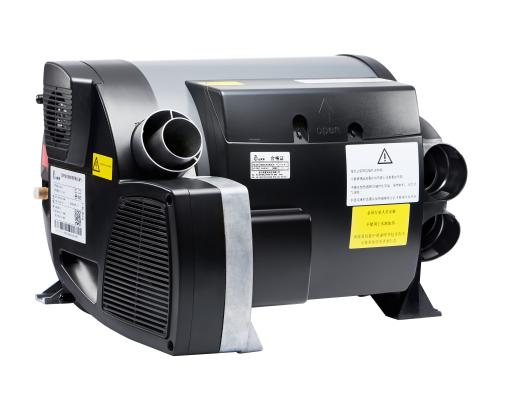

Gas-Powered Water and Air Heater Combo
Fueled by liquefied petroleum gas (LPG, propane/butane), this product combines air heating, 10 L water tank heating, and hybrid gas/mains electric power in one unit. It is rated for DC 12V, supports a DC 10.5V–16V operating voltage range and 220V/110V mains power, and offers gas heating output settings of 2000/4000/6000 and electric heating outputs of 900W/1800W. The product features high thermal efficiency, complete combustion, ultra-quiet operation, and an intelligent high-altitude mode, with a specified operating altitude of up to 5,000 m. The main unit measures 510 × 450 × 300 mm, has a 10 L water tank, weighs 15.6 kg without water, and has a maximum system pressure of 0.35 MPa.
Core Advantages
Integrated Space and Water Heating
Combines air heating and water storage heating in one unit, providing space heating and hot water for showers and kitchen faucets either independently or simultaneously.
Four-Way Warm Air Distribution
Delivers warm air to different areas through four air ducts, helping cover multiple functional spaces in RVs, camper vans, or yachts.
Hybrid Gas and Mains Electricity Mode
Supports LPG and 110V/220V mains electric heating, allowing flexible energy mode selection based on campsite power availability, travel plans, and heating needs.
Multiple Heating Power Levels
The source page lists three heating power levels—2000, 4000, and 6000—allowing output to be adjusted according to the ambient temperature and the space heating load.
Integrated 10L Water Tank
Features a built-in 10L water tank and a maximum system pressure of 0.35MPa, providing reliable stored-water heating for mobile showers and kitchen use.
Intelligent High-Altitude Function
The source page specifies an operating altitude of up to 5,000m and an intelligent high-altitude function, making it suitable for users traveling at high elevations.
Efficient, Quiet Operation
The page highlights high thermal efficiency, more complete combustion, and ultra-quiet operation, balancing heating performance with a comfortable overnight parking experience.
Compact, Integrated Installation
The 510×450×300mm unit integrates water and space heating functions and weighs 15.6kg without water, helping reduce the space required for installing multiple separate devices.
Basic Information and Technical Specifications
| Item | Parameter/Description |
|---|---|
| Fuel Type | Liquefied Petroleum Gas (LPG, Propane/Butane) |
| Rated Voltage | DC 12V |
| Operating Voltage Range | DC 10.5V–16V |
| Maximum Short-Term Current Draw | 5.6A |
| Average Current Draw | 1.3A |
| Mains Voltage | 220V/110V |
| Mains Heating Power | 900W / 1800W |
| Mains Current Draw | 3.9A / 7.8A |
| Gas Heating Power | 2000 / 4000 / 6000 |
| Fuel Consumption | 160 / 320 / 480 |
| Heating Medium | Water / Air |
| Water Tank Capacity | 10L |
| Maximum System Pressure | 0.35MPa |
| Warm Air Outlets | 4 |
| Operating Ambient Temperature | -20°C to 40°C |
| Operating Altitude | ≤5000m |
| Dimensions | 510×450×300mm |
| Main Unit Weight | 15.6kg (without water) |
Product and Compatible Accessories
Applications
RV Stationary Heating
When parked or camping, four warm-air outlets deliver heat to living areas, sleeping areas, and other spaces, reducing the space required for multiple standalone heaters.
Hot Water for RV Showers
The integrated 10 L water tank provides hot water for mobile showers. Continuous hot water capacity depends on the inlet water temperature, power setting, and flow rate.
Hot Water for Onboard Kitchens
Hot water can be supplied independently to the kitchen faucet for washing dishes and ingredients, as well as for everyday cleaning.
Car Campers and Converted Vehicles
The compact, integrated design is suitable for car campers or converted vehicles with limited space. Before installation, check the gas supply, water lines, electrical system, air intake and exhaust, and maintenance clearance.
Yachts and Mobile Cabins
The source page states that the unit can provide interior heating and hot water for yachts and similar applications. Marine installations must meet the applicable safety and ventilation requirements.
Campsite Shore Power Mode
When connected to a compatible 110 V or 220 V power supply, 900 W/1800 W electric heating can be used to reduce gas consumption while camping.
High-Altitude Travel
The intelligent high-altitude function is designed for users traveling at high elevations. The source page specifies a maximum operating altitude of 5,000 m.
Cold-Weather Travel
The unit can provide both space heating and domestic hot water during colder seasons. Refer to the product nameplate and manual for the specific minimum ambient temperature.
Recommended Configuration and Compatible Accessories (Subject to the Order Confirmation)
Frequently Asked Questions
Can this all-in-one unit provide space heating and hot water at the same time?
Yes. It can heat a mobile living space while simultaneously or separately providing hot water for bathing and kitchen faucets. Actual simultaneous performance depends on the selected energy mode, power level, inlet water temperature, and water flow rate.
What type of gas can be used?
Liquefied petroleum gas (LPG), including propane or butane. The gas cylinder, pressure regulator, fittings, and hose must comply with local gas supply specifications and product requirements.
Can it operate without mains power?
The product primarily uses LPG as fuel and a DC 12V electrical system to power the controller, fan, and other components. It can operate in gas mode without 110V/220V mains power, but a DC operating voltage of 10.5V–16V is still required.
Which mains power specifications are supported?
It supports 220V/110V mains power.
What is the operating ambient temperature range?
-20°C to -40°C
Is it suitable for use in high-altitude areas?
It features intelligent high-altitude functionality and can operate at altitudes of up to 5,000 meters.
How much pressure can the 10 L water tank withstand?
The water tank has a capacity of 10 L, and the system's maximum pressure is 0.35 MPa. The water supply system must include pressure-reducing, check, and pressure-relief measures that comply with the manual's requirements.
Can I install it myself?
It is not recommended. The unit involves LPG, high-temperature exhaust, 110V/220V mains power, DC 12V, plumbing, and openings in the vehicle body. Installation, leak testing, commissioning, and acceptance inspection should be performed by qualified professionals.
Which compatible accessories are listed on the source page?
A gas filter, gas explosion-proof switch (Chinese national standard), LCD switch, and water-line air inlet valve. Confirm before ordering whether these accessories are included as standard, as well as their specific models and connection sizes.
