Fuel Cooktop and Air Heater Combo (Dual-Burner)
Featuring a dual-burner design, this unit integrates open-flame-free cooking and warm air heating in a single device. It can also deliver warm air to the interiors of RVs, yachts, and special-purpose vehicles. The product has a rated voltage of DC 12V, a heating output of 900–2200W, and a maximum warm air flow of 110m³/h. It supports operation at altitudes of up to 5,000m. Its dimensions are 496×367×213mm, and the main unit weighs 12kg. Various types of cookware, including iron, aluminum, earthenware, and ceramic pots and pans, can be used without requiring induction-compatible cookware. With no low-frequency electromagnetic radiation associated with induction cooktops, it features intelligent high-altitude operation, ultra-quiet performance, low fuel consumption, and dual-purpose cooking and heating functionality.
Key Advantages
Dual-Zone Cooktop Design
The large cooking zone is ideal for quick frying and stir-frying, while the small zone is designed for slow stewing and gentle simmering, allowing you to coordinate cooking times for different dishes.
Dual-Purpose Cooking and Heating
The heat generated by fuel combustion is used both to heat the ceramic cooktop and to warm the interior of RVs, yachts, or special-purpose vehicles through the warm-air system.
Flameless for Greater Peace of Mind
The combustion process is isolated from the interior space, with heat transferred through a black crystal explosion-resistant ceramic panel, so no open flame is produced on the cooktop during normal use.
Compatible with Various Cookware
Cookware made of iron, aluminum, earthenware, ceramic, and other materials can be used, with no need for induction-compatible cookware.
Intelligent High-Altitude Function
According to the original product specifications, the operating altitude is up to 5,000 m, making it suitable for high-altitude road trips, RV travel, and mobile operations.
Ultra-Quiet Operation
Designed for spaces with high comfort requirements, such as vehicle and boat cabins, it minimizes the impact of equipment operation on rest and conversation.
Low Fuel Consumption
Fuel consumption is approximately 0.10–0.28 L/h for the diesel version and 0.15–0.29 L/h for the gasoline version, depending on operating conditions.
Suitable for a Wide Temperature Range
The specified operating ambient temperature range is -40°C to 35°C, meeting the needs of vehicles in cold regions and outdoor use in winter.
Technical Specifications and Basic Information
| Parameter | Value |
|---|---|
| Product Name | Fuel Stove and Air Heater Combo (Dual Burner) |
| Rated Voltage | DC 12V |
| Heating Power | 900-2200W |
| Warm Air Output | Max. 110m³/h |
| Maximum Short-Term Power Consumption | 8-10A |
| Average Power Consumption | 0.55-0.85A |
| Fuel Type | Diesel / Gasoline (Depending on Model) |
| Diesel Consumption | 0.10-0.28L/h |
| Gasoline Consumption | 0.15-0.29L/h |
| Operating Ambient Temperature | -40℃ to 35℃ |
| Operating Altitude | ≤5000m |
| Dimensions | 496×367×213mm |
| Main Unit Weight | 12kg |
| Cooktop Construction | Black Crystal Explosion-Proof Ceramic Panel, Dual-Burner Design |
| Compatible Cookware | Iron, Aluminum, Earthenware, Ceramic, and Other Cookware |

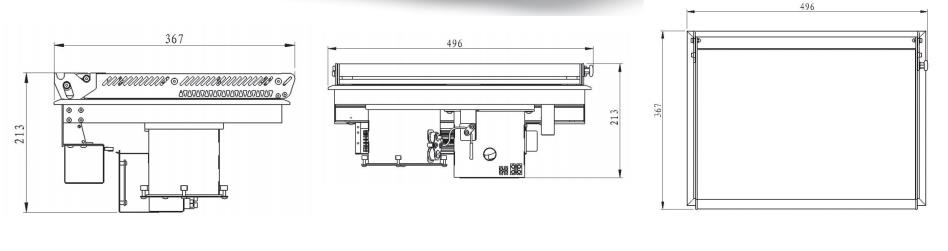

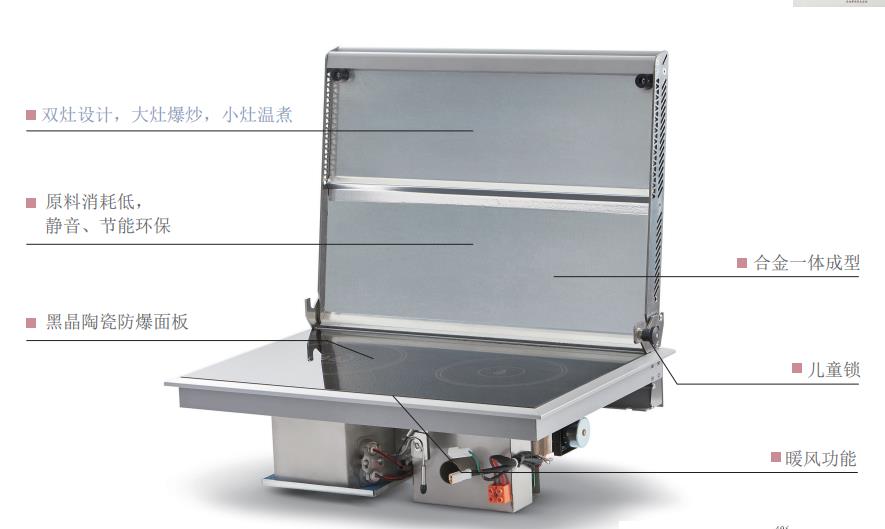

Product Appearance, Dimensions, and Features
Applications
RV Kitchen and Parking Heating
Once integrated into an RV countertop, it supports frying, stir-frying, stewing, boiling, and water heating, while supplying warm air to the living compartment in cold weather.
Yachts and Small Boat Cabins
Suitable for installation on yachts or workboats with compliant fuel, intake and exhaust, and power supply systems, providing open-flame-free cooking and warm cabin air.
Special-Purpose Vehicles and Mobile Work Vehicles
Suitable for emergency support vehicles, engineering service vehicles, mobile work vehicles, and more, providing personnel with hot meals, hot drinks, and warmth while parked.
High-Altitude Road Trips and Overland Travel
With an intelligent high-altitude mode and a rated operating altitude of up to 5,000 m, it is suitable for high-altitude RV travel and mobile vehicle operations.
Cold-Region Living While Parked
With a rated ambient temperature range of -40°C to 35°C, it is suitable for winter camping, cold-region duty, and mobile living in low-temperature environments.
Simultaneous Multi-Dish Cooking
Use the large burner for quick stir-frying and the small burner for slow stewing, allowing main dishes, soups, or warming tasks to be handled simultaneously in limited counter space for greater mobile kitchen efficiency.
Recommended Configuration List (Subject to the Order Confirmation)
Frequently Asked Questions
Can this product be used for cooking and heating at the same time?
Yes. The ceramic cooktop supports dual-burner cooking, and the unit also provides warm air. For simultaneous operation and heat distribution, refer to the controller settings and instruction manual.
What cooking methods are the two burners suitable for?
The large burner is suitable for high-heat cooking methods such as quick searing and stir-frying, while the small burner is suitable for slow stewing, simmering, and keeping food warm.
What types of cookware can be used?
Iron, aluminum, earthenware, and ceramic cookware can all be used. Induction-compatible cookware is not required. The bottom of the cookware should be flat, stable, and appropriately sized for the cooktop.
What are the power supply and power consumption requirements?
The rated voltage is DC 12V, with a short-term maximum current of approximately 8–10A and an average current of approximately 0.55–0.85A. The vehicle's power supply, wire gauge, fuse, and grounding must meet the installation instructions.
Can it be used at high altitudes and in low-temperature environments?
The specifications indicate a maximum operating altitude of 5,000 m and an operating ambient temperature range of -40°C to 35°C. In extreme conditions, use suitable fuel and keep the air intake and exhaust unobstructed.
Why is it described as a flameless cooktop?
Fuel burns inside the unit and heats the black crystal explosion-resistant ceramic panel. The cookware receives heat through the heated surface, so the cooking area is not directly exposed to flames during normal operation.
What should be considered during installation?
The unit involves fuel, electricity, high-temperature exhaust, and warm-air ducting. It must be installed by qualified professionals in accordance with the instruction manual, ensuring that the combustion air intake, exhaust outlet, and indoor ventilation systems remain separate and safe.
Product Description, Operating Principle, Installation and Maintenance
产品说明
燃油炉灶暖风一体机（双灶）面向房车、游艇和特种车辆设计，将双灶烹饪平台与暖风供给集成在紧凑机身内。大灶适合快煎、爆炒，小灶适合慢炖、温煮，黑晶防爆陶瓷面板可兼容铁、铝、瓦、陶瓷等多种锅具。
工作原理
设备内部燃烧燃油，将热量传递至黑晶陶瓷炉面，锅具通过炉面受热完成烹饪；另一部分热量可经换热和风路系统形成暖风。燃烧区域、废气排放与车舱空气应按安装规范隔离，正常烹饪区域不暴露明火。
两种使用模式
烹饪时根据食材和锅具选择大灶或小灶，大灶承担高热量任务，小灶承担慢炖和保温任务。需要取暖时，通过暖风风路向车舱或船舱供热。具体模式切换、温度调节和同时运行规则以产品控制器及说明书为准。
选型确认
下单前应确认柴油或汽油版本、DC 12V 电气条件、安装空间、暖风管路走向、燃油供给方式、进排气位置、控制器和附件清单。外形尺寸为 496×367×213mm，主机重量约 12kg，应预留检修、散热和安全隔离空间。
专业安装
设备涉及燃油、电气、高温表面和燃烧废气，必须由具备经验的专业人员安装。燃烧进气和废气必须安全引至车外或舱外，不得与暖风进气混接；燃油管路应远离热源和运动部件，线束应配置符合要求的保险并可靠固定。
首次使用
首次启动前检查燃油类型、管路密封、电源极性、保险容量、进排气通畅情况、暖风风管和出风口。试运行时观察点火、燃烧、升温和停机过程，确认没有燃油渗漏、异常烟气、异味、异响或故障报码。
日常维护
保持陶瓷炉面清洁，待炉面完全冷却后使用柔软湿布擦拭，避免硬物撞击或强力刮擦。定期检查燃油管路、线束、进排气组件、暖风风管和紧固件；长期停用后再次启动前应完成全面检查。出现渗漏、异常排烟、持续异味、故障报码或温度异常时，应立即停机并由专业人员检修。
